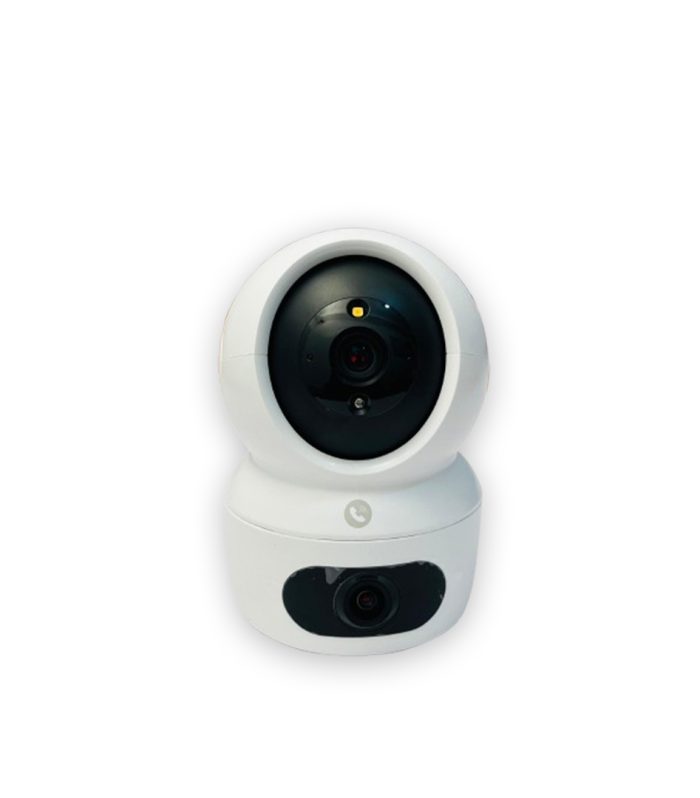

EZVIZ Smart Home Camera CS-H7c Dual
Name     | Smart Home Camera |
Brand Name  | EZVIZ |
Model | CS-H7c-R100-8G44WF |
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Name     | Smart Home Camera |
Brand Name  | EZVIZ |
Model | CS-H7c-R100-8G44WF |
Camera
Resolution  | Dual 2K+ Resolution |
Image Sensor  | 1/3″ Progressiveg Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Fixed Lens | 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical) |
PT Lens | 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical) |
Lens Mount | M12 |
DNR | 3D DNR |
WDR | Digital WDR |
Day & Night      | IR-cut filter with auto-switching |
Compression
Video Compression | H.264/H.265 |
Video Bit Rate | Adaptive bit rate. |
Network
Smart Alarm
 |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
Wi-Fi Pairing | AP pairing |
Max. Resolution | 2560 × 1440 |
Frame Rate   | Max:30fps; Self-Adaptive during network transmission |
Interface
Storage         | Micro SD card slot (Max. 512G) |
Power | TYPE-C |
Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
Wi-Fi
Standard  | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
Frequency Range | 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
Channel Bandwidth | 2.4GHz Supports 20MHz 5GHz Supports 80MHz |
Security | WPA-PSK, WPA2-PSK, WPA3-Personal |
Transmission Rate   | 2.4GHz Max. Rate Support: 11b_11M,11g_54M, 11n_MCS7_20M,11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M,11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
Output Power (EIRP) | 20 dBm |
Antenna Gain | 2.56dBi@2.48GHz,3.18dBi@5.22GHz |
General
Operating Conditions      | -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing) |
Power Consumption | 8W max |
Power Supply | DC 5V/2A |
IR Range | MAX. 10 meters (32.81ft) |
Dimensions | 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in) |
Package Dimensions    | 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in) |
Net Weight  | 270 g (9.52 oz) |
Bare Weight  | 499 g (17.60 oz) |
In the box
In the box
       |
Camera (x1)
Power Adapter (x1) Power Cable (x1) Drill Template (x1) Mounting Plate (x1) Screw Kit (x1) Regulatory Information (x1) Quick Start Guide (x1) |
Certifications
Certifications | CE / UKCA / WEEE / RoHS / REACH / UL |
