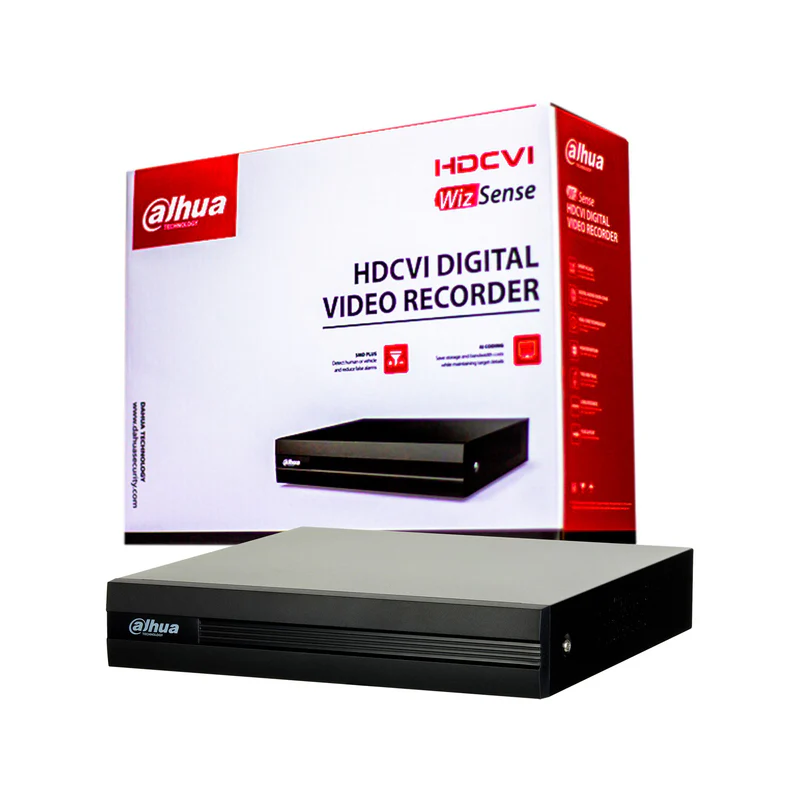

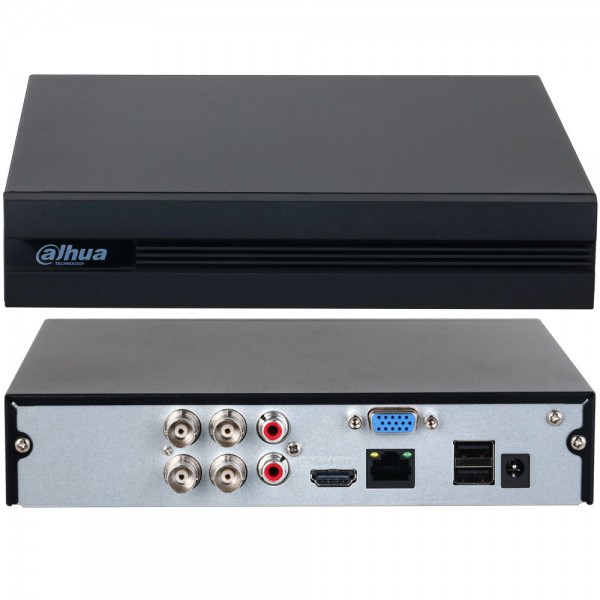

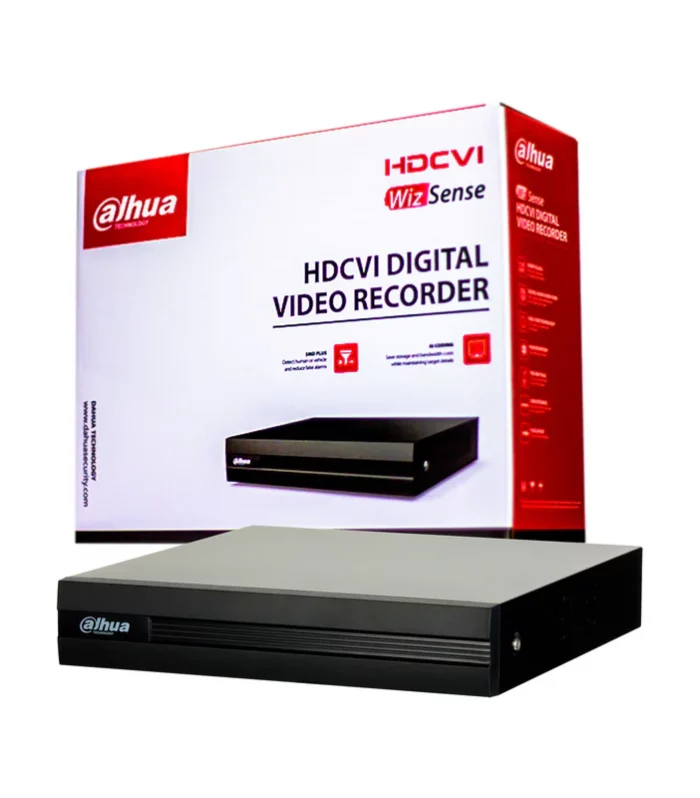

Dahua 4 Channel WizSense Digital Video Recorder DH-XVR1B04-I-V2

LKR 13,000

18 products sold in last 16 hours
Selling fast! Over 4 people have in their cart
3 in stock
28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

XVR1B04-I

4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder

* The information below only applies to hardware version 2.0 of the product.

> 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.

> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.

> Supports HDCVI, AHD, TVI, CVBS and IP video input.

> Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 20 Mbps.

Smart H.265+ and H.265 dual-stream video compression.

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.

2. TVI: 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 5 channels of IPC access

1 IP channel by default + 4 channels (analog channels are converted to IP channels)

Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps

*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capacity

Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)

Sub stream: CIF@(1 fps–15 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–4096 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA

HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection

Recording Playback

1/4

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Audio Input

1-channel RCA

4-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

Disk Interface

1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.

USB

2 (2 rear USB 2.0 ports)

HDMI

1

  • VGA

    1

    Network Port

    1 (10/100 Mbps Ethernet port, RJ-45)

    General

    Power Supply

    12 VDC, 1.5 A

    Power Consumption

    <7 W (without HDD)

    Net Weight

    0.55 kg (1.19 lb)

    Gross Weight

    0.97 kg (2.11 lb)

    Product Dimensions

    197.0 mm × 203.1 mm × 41.5 mm (7.76″ × 8.00″ × 1.63″) (W × D × H)

    Packaging Dimensions

    332.0 mm × 64.0 mm × 240.0 mm (13.07″ × 2.52″ × 9.45″) (W × D × H)

    Operating Temperature

    –10 °C to +45 °C (+14 °F to +113 °F)

    Storage Temperature

    –20 °C to +60 °C (–4 °F to +140 °F)

    Operating Humidity

    10%–90% (RH), non-condensing

    Installation

    Desktop

    Certifications

    CE-LVD: IEC 62368-1:2014

    CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
