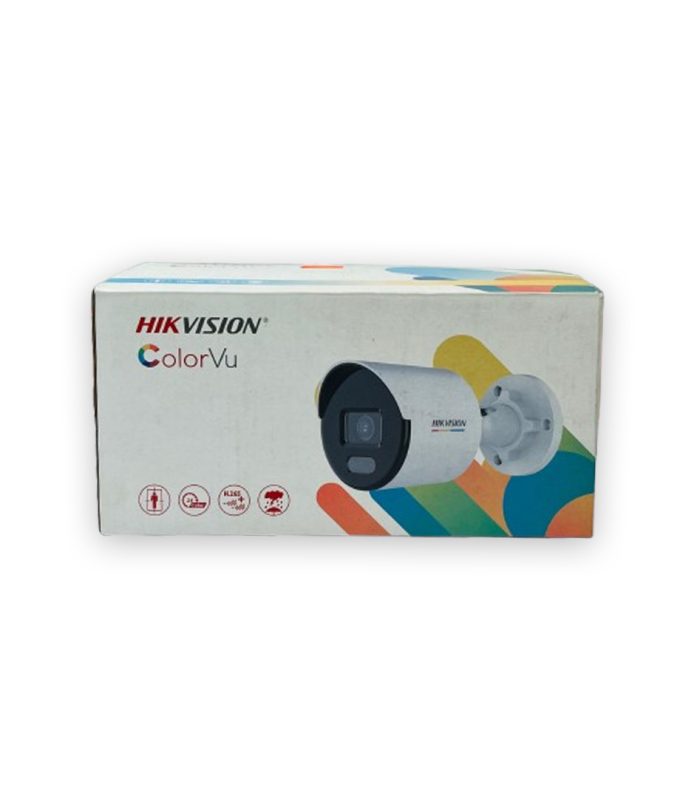

Hikvision ColorVu Bullet Camera DS-2CD1027G2-L
LKR 23,850.00
| Name | Bullet Camera |
| Brand Name | Hikvision ColorVu |
| Model
|
DS-2CD1027G2-L(2.8mm)
DS-2CD1027G2-L(4mm) |
Description
2 MP ColorVu MD 2.0 Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- 24/7 colorful imaging
- Support Human and Vehicle Detection
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
- Support on-board storage up to 256GB (SD card slot)(Optional)
- Built-in microphone for real-time audio security(Optional)
| Name | Bullet Camera |
| Brand Name | Hikvision ColorVu |
| Model
|
DS-2CD1027G2-L(2.8mm)
DS-2CD1027G2-L(4mm) |
Camera
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV
|
2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°
4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field
|
2.8 mm: 1.5 m to ∞
4 mm: 2.1 m to ∞ |
DORI
| DORI
|
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
Illuminator
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
Video
| Main Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream
|
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
| DS-2CD1027G2-L | Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region Of Interest (ROI) | 1 fixed region(s) for main stream |
Audio
| Audio Type | -U: Mono sound |
| Environment Noise Filtering | -U: Yes |
| Audio Sampling Rate | -U: 8 kHz/16 kHz |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate
|
-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps
(G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK |
| User/Host | Up to 32 users
3 user levels: administrator, operator, and user |
| Security
|
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | iVMS-4200,Hik-Connect |
| Web Browser
|
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | DWDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Setting
|
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-In Microphone | -U: Yes |
| Reset Key | -F: Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture |
General
| Material | Aluminum alloy body |
| Dimensions | Ø76.6 mm × 164.4 mm (Ø3 × 6.5\”)” |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″) |
| Weight | -L: Approx. 405 g (0.9 lb.); -LUF: Approx. 425 g (0.9 lb.) |
| With package Weight | -L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non- condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Power
|
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
Approval
| EMC
|
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 |
| Safety
|
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment
|
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
