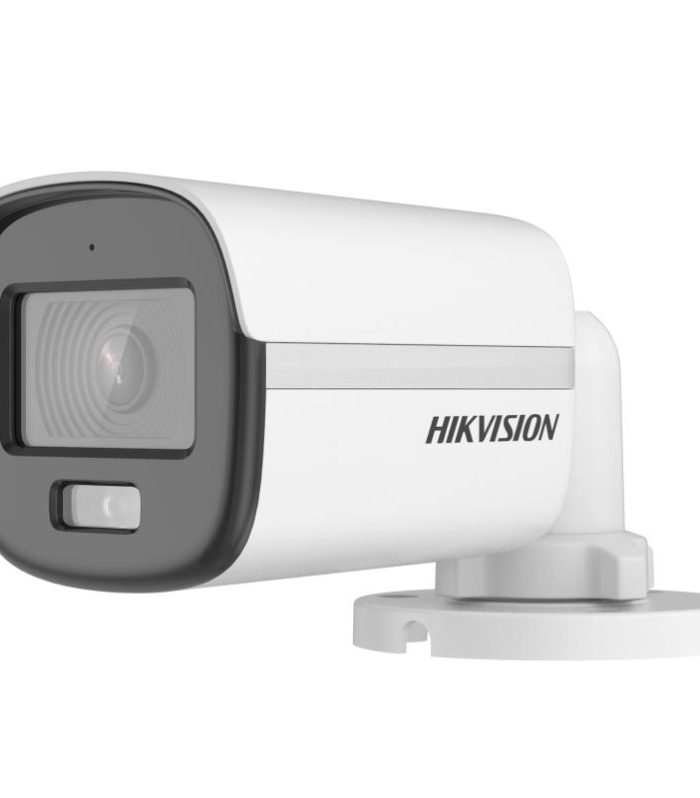

Hikvision ColorVu Bullet Camera DS-2CE10DF0T-PFS
LKR 9,100.00
| Name | Bullet Camera |
| Brand Name | Hikvision ColorVu |
| Model
|
DS-2CE10DF0T-PFS(2.8mm)
DS-2CE10DF0T-PFS(3.6mm) |
Description
2MP ColorVu Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
| Name | Bullet Camera |
| Brand Name | Hikvision ColorVu |
| Model
|
DS-2CE10DF0T-PFS(2.8mm)
DS-2CE10DF0T-PFS(3.6mm) |
Camera
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
Lens
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°
3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99° |
| Lens Mount | M12 |
Illuminator
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Sharpness, Anti-banding, AGC |
| Frame Rate
|
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTS |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
Interface
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm (White Light) |
General
| Material | Plastic |
| Dimensions | 161.1 mm × 68.4 mm (6.34″ × 2.69″) |
| Weight | Approx. 389 g (0.86 lb.) |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Power
|
12 VDC ± 25%, max. 2 W
*You are recommended to use one power adapter to supply the power for one camera. |
Approval
| Protection | IP67 |
