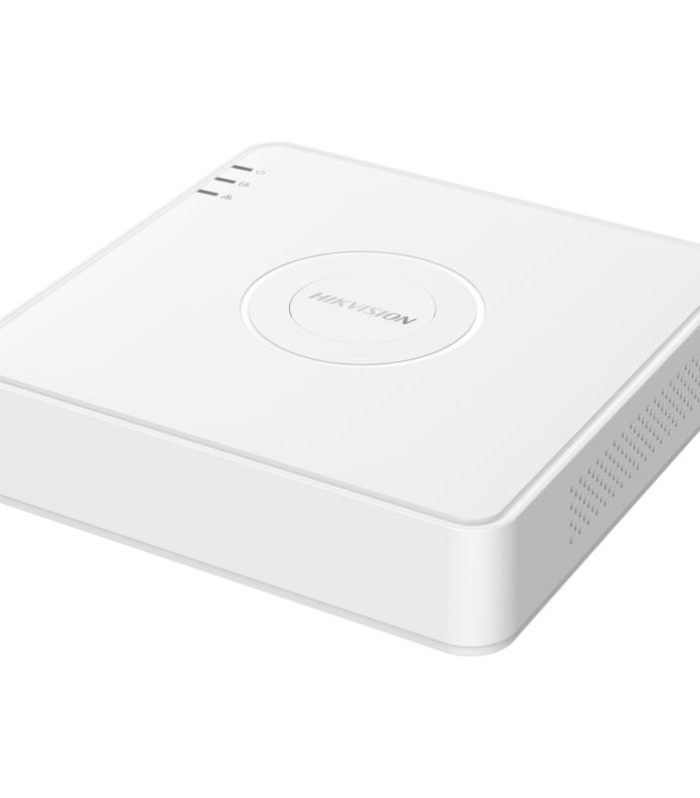

Hikvision DVR – 8 Channel DS-7108HGHI-M1

Hikvision DVR – 8 Channel DS-7108HGHI-M1

LKR 18,500.00

Name DVR – 8 Channel
Brand Name  Hikvision
Model  DS-7108HGHI-M1(C)

1 in stock

SKU: DS-7108HGHI-M1 Category:

Description

8-ch 720p Mini 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • 265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 10-ch IP camera input (up to 5 MP)
  • Encoding ability up to 1080p lite @ 15 fps
  • 1200 m for 720p HDTVI signal
Name DVR – 8 Channel
Brand Name  Hikvision
Model  DS-7108HGHI-M1(C)





Motion Detection 2.0

Human/Vehicle Analysis







 Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;
Video And Audio
IP Video Input





 2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input



 8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input  Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input



 1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable
Audio Output    1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio  Reuse the first audio input
Synchronous Playback 8-ch



Recording

Video Compression      H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution





 For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate













 Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate   32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps



Network

Total Bandwidth  72 Mbps
Remote Connection     64
Network Protocol     TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
Network Interface  1, RJ45 10/100 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA   1 SATA interface
Capacity  Up to 4 TB capacity for each disk
USB Interface          Rear panel: 2 × USB 2.0
Alarm In/Out   N/A



General

Power Supply 12 VDC, 1.5 A
Consumption ≤ 17 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
Working Humidity 10% to 90%
Dimension (W × D × H)  200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight          ≤ 1 kg (without HDD, 2.2 lb.)
