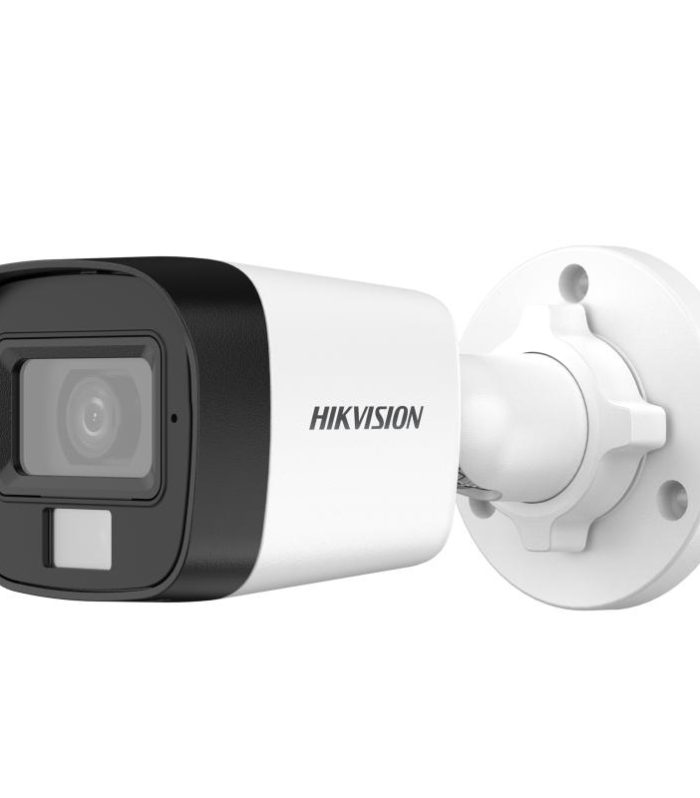

Hikvision Smart Hybrid Light Bullet Network Camera DS-2CE16D0T-EXLPF
LKR 5,994.40
Name |
Bullet Camera |
Brand Name |
Hikvision Smart Hybrid Light |
Model Number |
DS-2CE16D0T-EXLPF(2.8mm)DS-2CE16D0T-EXLPF(3.6mm) |
Description
2MP Smart Hybrid Light Fixed Mini Bullet Camera
· High quality imaging with 2 MP, 1920 × 1080 resolution
· Smart-Hybrid light, optimize your security with flexible lighting options
· 2.8 mm, 3.6 mm fixed focal lens
· Up to 20 m IR distance for bright night imaging
· Up to 20 m white light distance for bright night imaging
· One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
· Water and dust resistant (IP67)
Name |
Bullet Camera |
Brand Name |
Hikvision Smart Hybrid Light |
Model Number |
DS-2CE16D0T-EXLPF(2.8mm)DS-2CE16D0T-EXLPF(3.6mm) |
Camera
Image Sensor |
2 MP CMOS |
Max. Resolution |
1920 (H) × 1080 (V) |
Min. Illumination |
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° |
Signal System |
PAL/NTSC |
Lens
Lens Type |
2.8 mm, 3.6 mm fixed focal lens |
Focal Length & FOV |
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° |
Lens Mount |
M12 |
Illuminator
Supplement Light Type |
White Light;IR |
Supplement Light Range |
IR : Up to 20 m White Light : Up to 20 m |
Image Parameters Switch |
STD/HIGH-SAT/HIGHLIGHT |
Image Settings |
Brightness, Sharpness, Smart IR |
Frame Rate |
TVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC |
Wide Dynamic Range (WDR) |
Digital WDR |
Image Enhancement |
DWDR/BLC/HLC/Global |
White Balance |
Auto/Manual |
AGC |
Yes |
Interface
Video Output |
Switchable TVI/AHD/CVI/CVBS |
General
Material |
Plastic |
Dimension |
Ø70 mm × 138.8 mm (Ø2.76″ x 5.46″) |
Weight |
Max. 150 g (0.33 lb.) |
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) |
Communication |
HIKVISION-C |
Language |
English |
Power Supply |
12 VDC ± 25%, Max. 3.2 W*You are recommended to use one power adapter to supply the power for one camera. |
Approval
Protection |
IP67 |
